Frameless Balustrade Aluminium Extrusion U Channel AL-A40

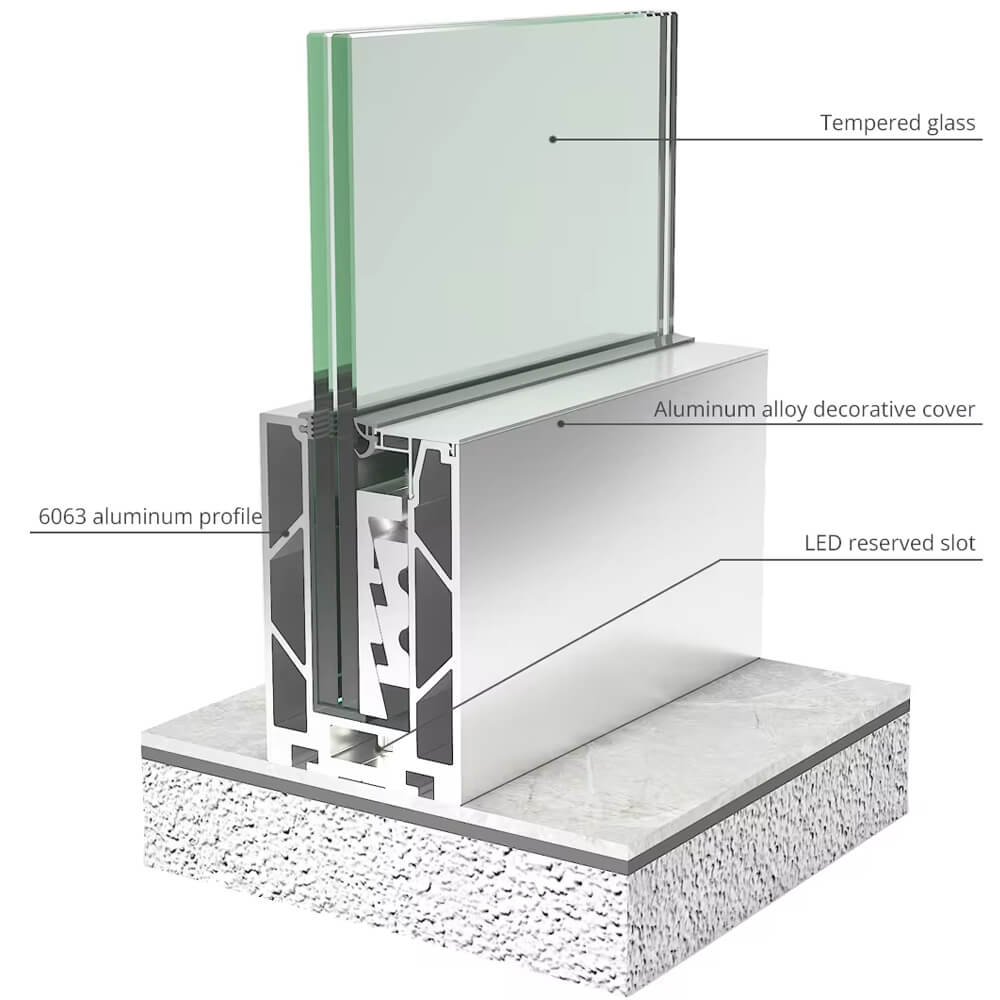

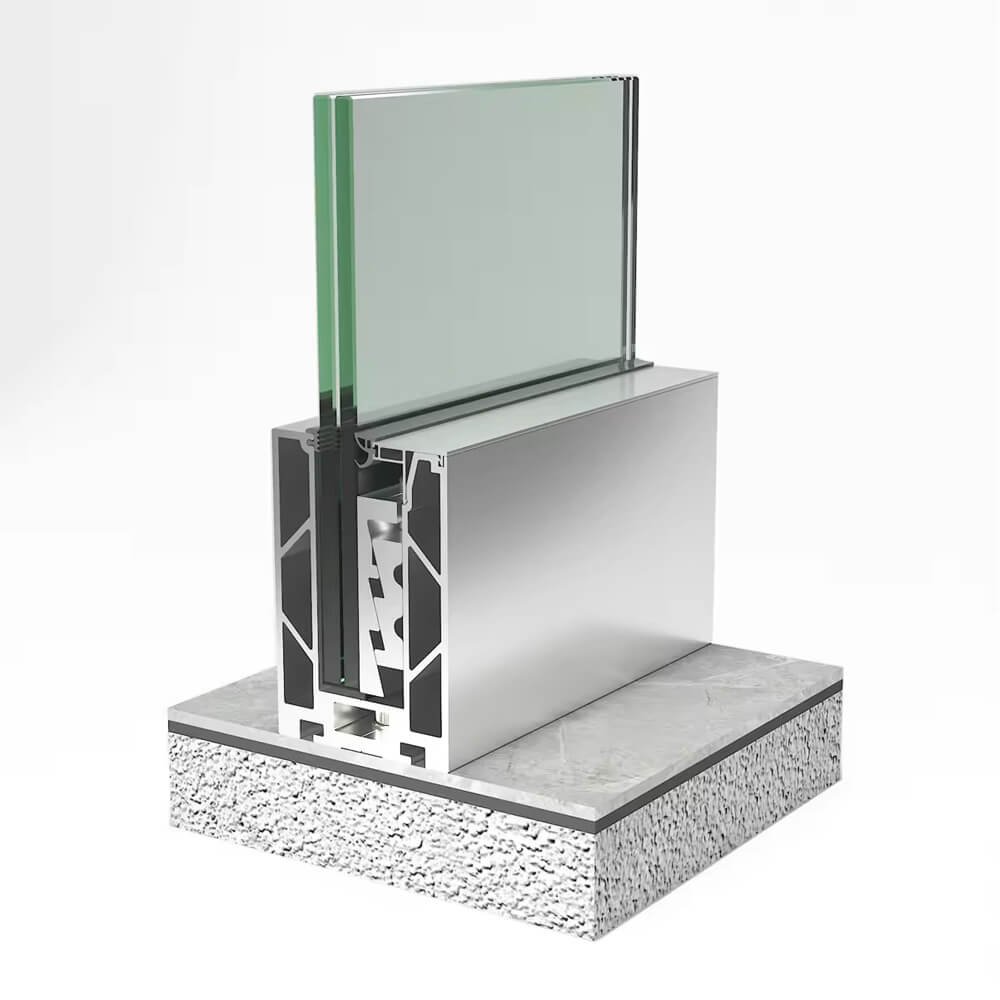

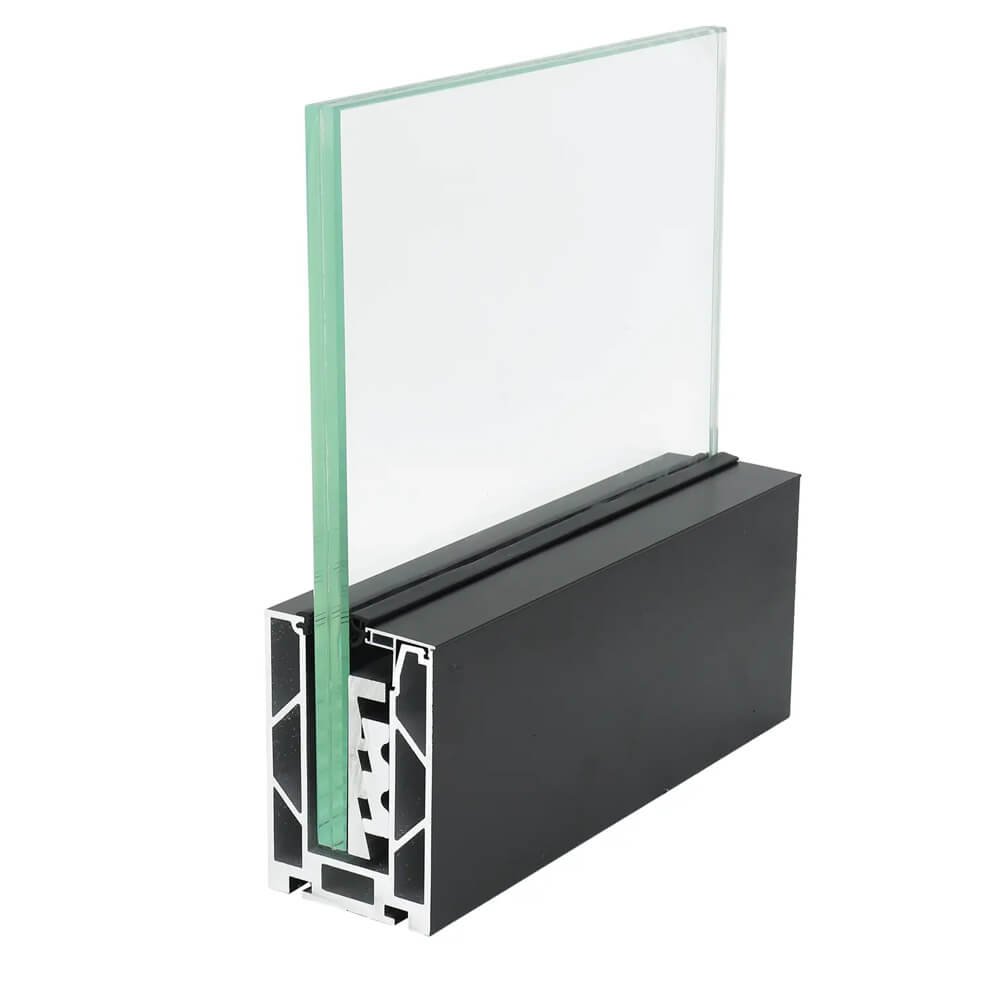

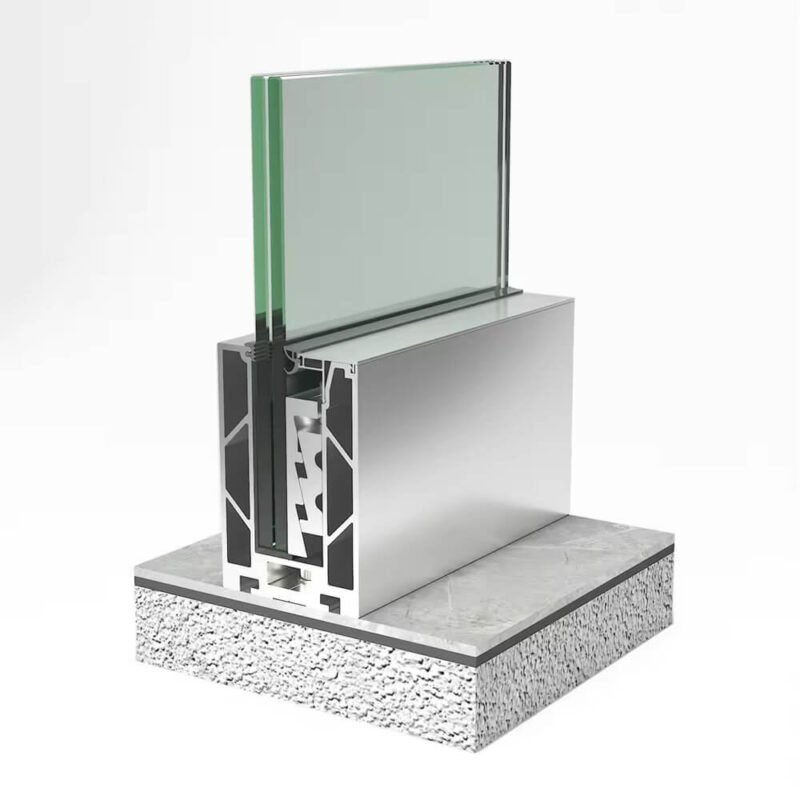

The AL-A40 railing system is made from Aluminum alloy 6063-T5 and is finished with powder coating and Anodizing.
It has external dimensions of 120*80mm and is available in the standard colors of Matt Black and Matt Grey.
The railing is compatible with 12mm, 15mm tempered glass thicknesses, 6+6, and 8+8 laminated glass.

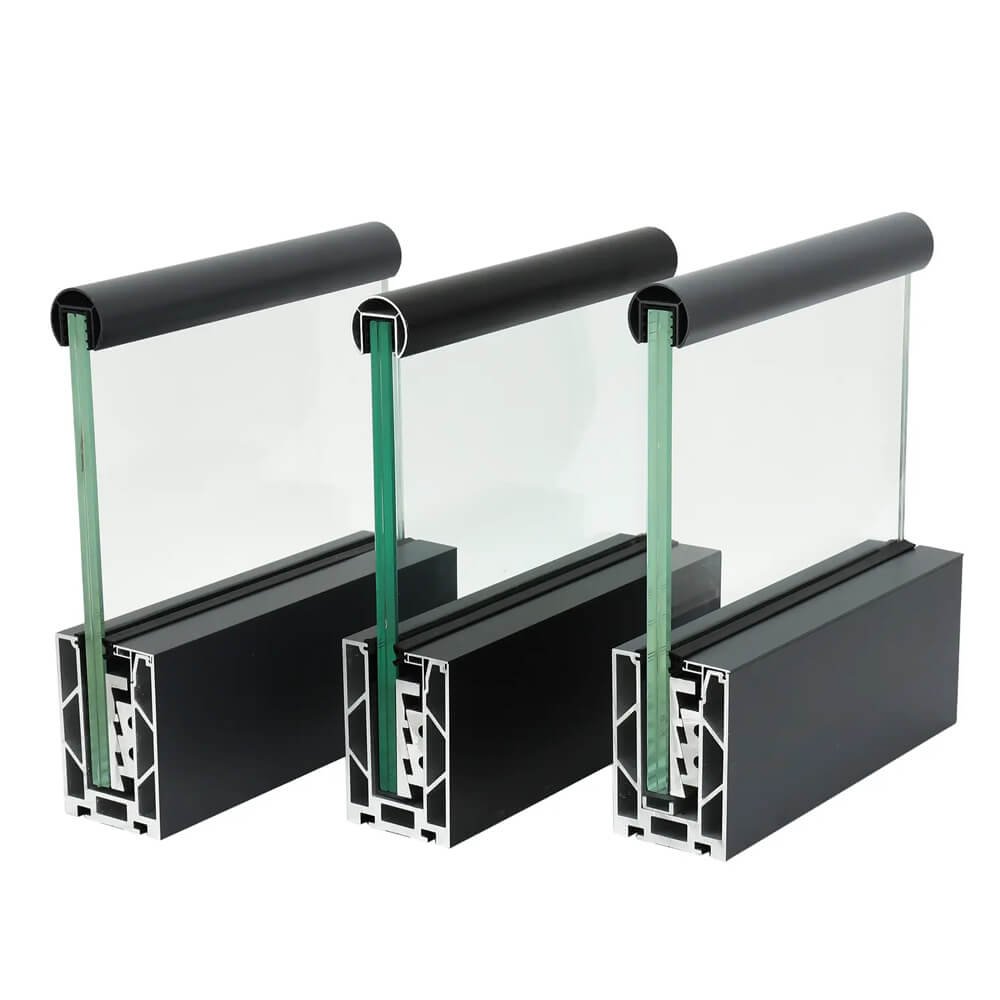

The glass railing height can reach up to 1200mm, and it is recommended to use a cap rail.
LED lighting strips can be mounted at the bottom of the glass.
The AL-A40 system is secured at the bottom using hexagonal socket head cap expansion bolts.
For every 1 meter, 4 pieces of M10*100 expansion bolts are provided.
The installation base can be on a concrete floor, timber floor, or steel frame.
The AL-A40 On-floor Full Glass Railing System is widely acclaimed for its use in grand and prestigious projects. It can accommodate safety glass up to 18 mm thick. Beyond its elegant and aesthetic appearance, its sturdy mechanical structure provides a sense of security and dependability.
With top-notch quality, excellent static test results, straightforward installation, and a sleek design, the AL-A40 On-floor Full Glass Railing System offers a wide selection of safety glass options to suit various settings. The specially designed LED channel and holder profile can accommodate all types of LED strip lights available on the market, allowing you to experience the vibrant and cheerful glow of colorful LED lights at night.
In addition to its use as a continuous linear system, the AL-A40 can also function as a 20CM and 30CM block. Even when employing the 20CM block on the floor, the linear LED holder profile passes through the blocks, ensuring the glass remains straight. This innovative design prevents installation errors and securely holds the LED strip light under the glass, allowing the LED light to illuminate the glass effectively.
The AL-A40 On-floor Full Glass Railing System offers effortless installation, requiring workers to simply stand inside the balcony to complete the installation process. This eliminates the need for costly aerial work and scaffold assembly. Additionally, it enhances the protection and safety of high-standard buildings. The AL A40 system complies with American standard ASTM E2358-17 and Chinese standard JG/T17-2012, withstanding horizontal impact loads of up to 2040N per square meter without the need for a handrail tube. Compatible glass options include 12mm and 15mm tempered glass, as well as 6+6 and 8+8 laminated tempered glass.
Application

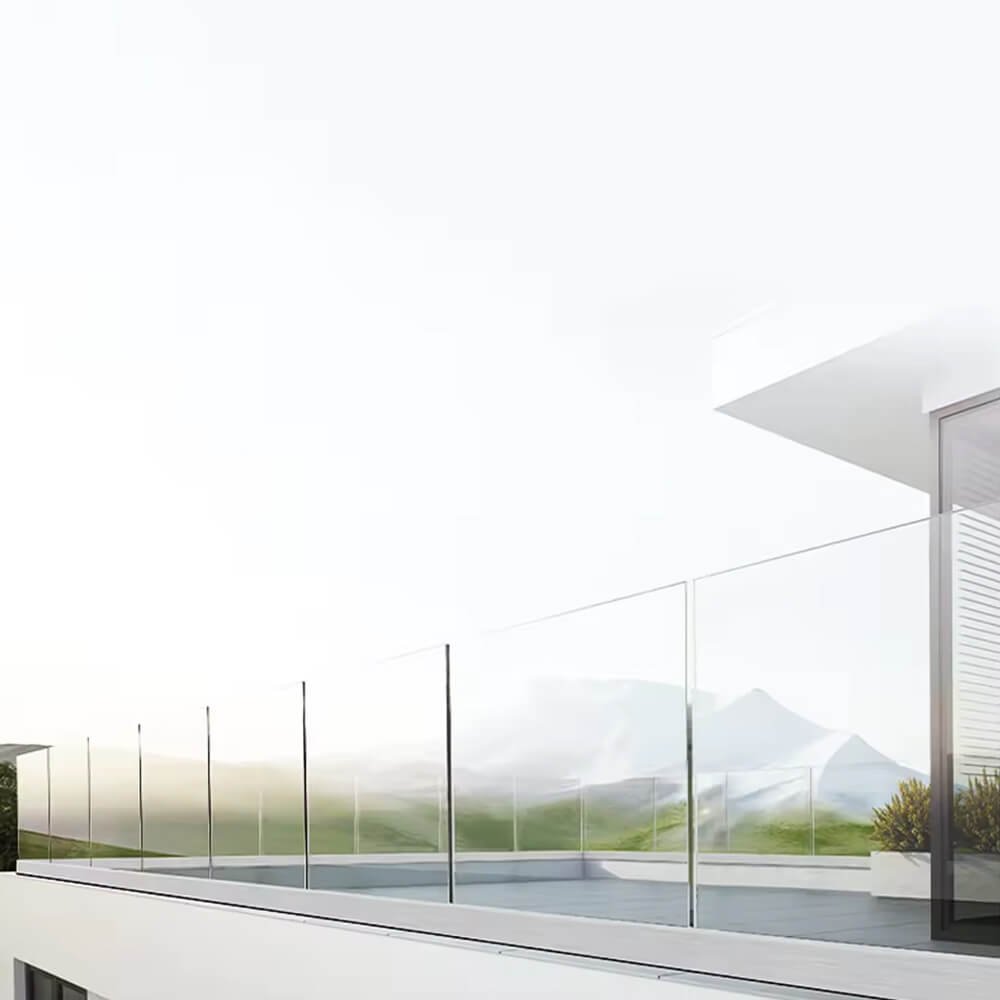

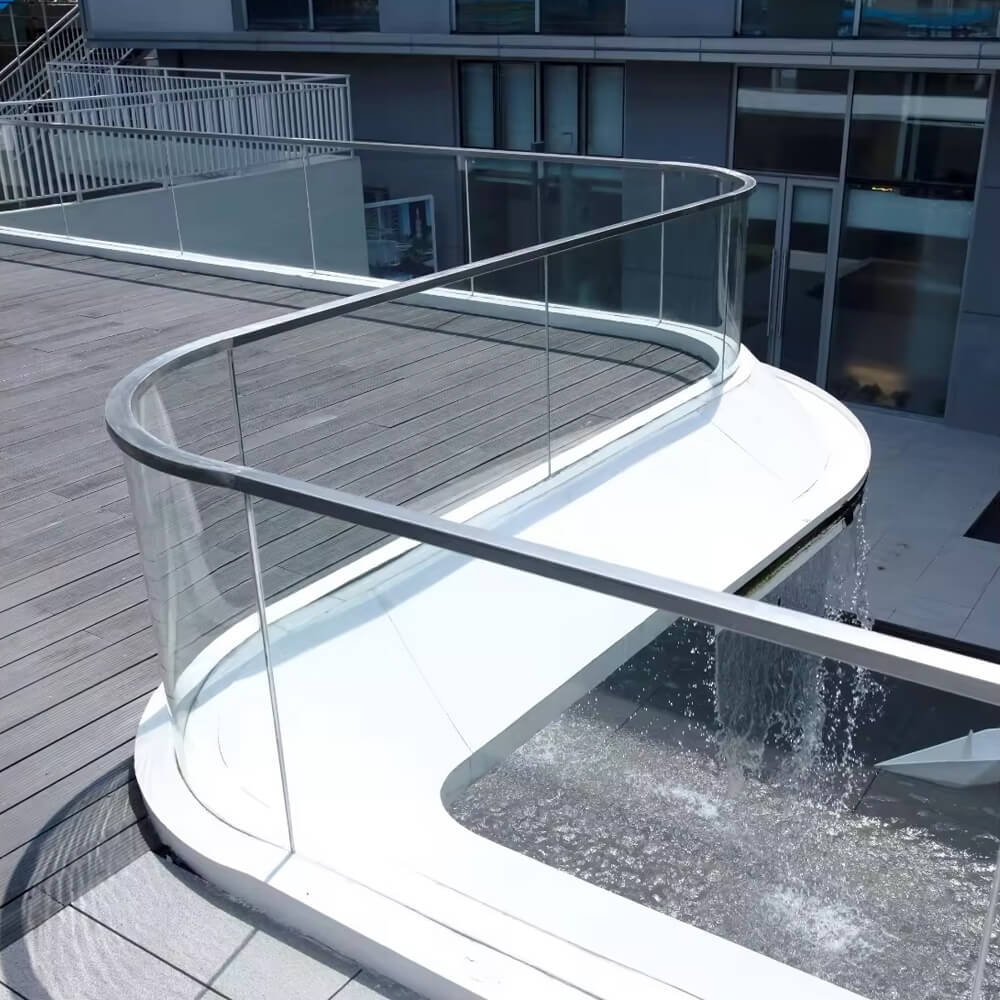

Suitable for balcony, terrace, rooftop, staircase, partition of plaza, guard railing, garden fence, swimming pool fence frameless glass balustrade.
