AL-M80 Aluminium Extrusion U Channel For Frameless Glass Railing

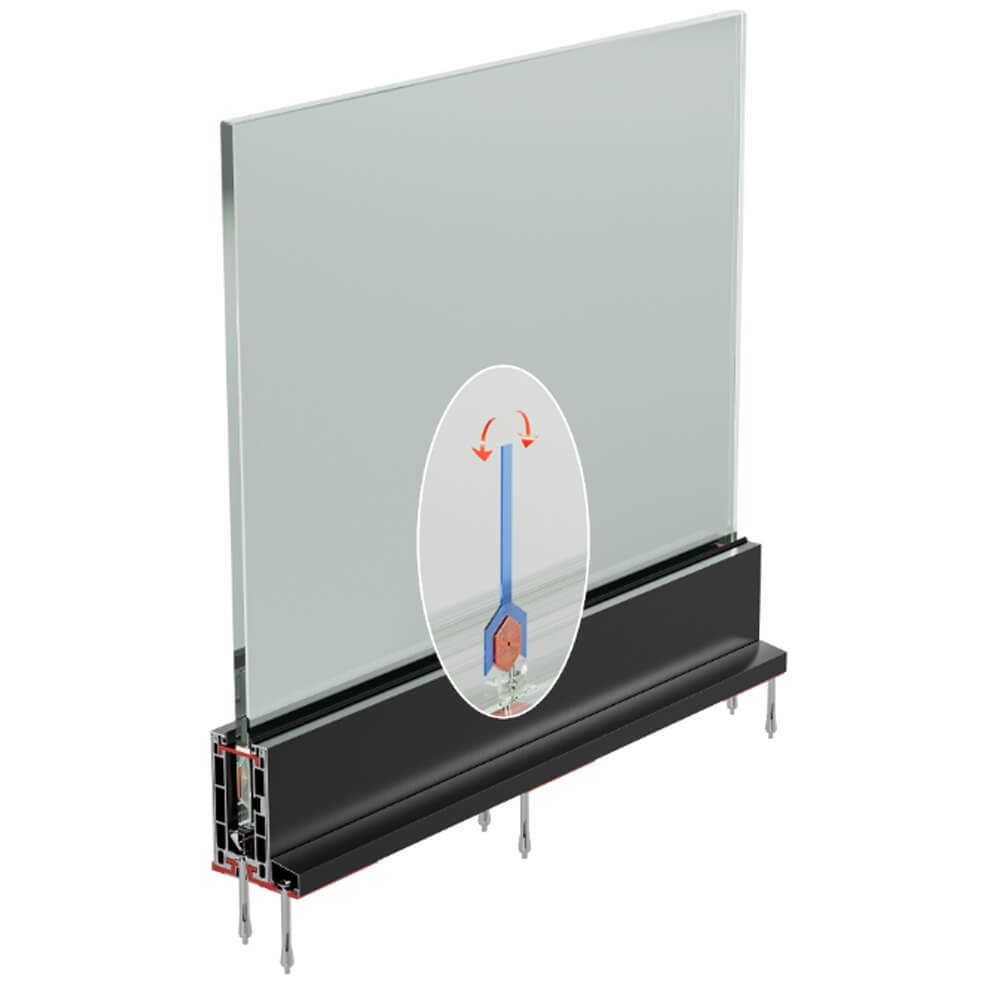

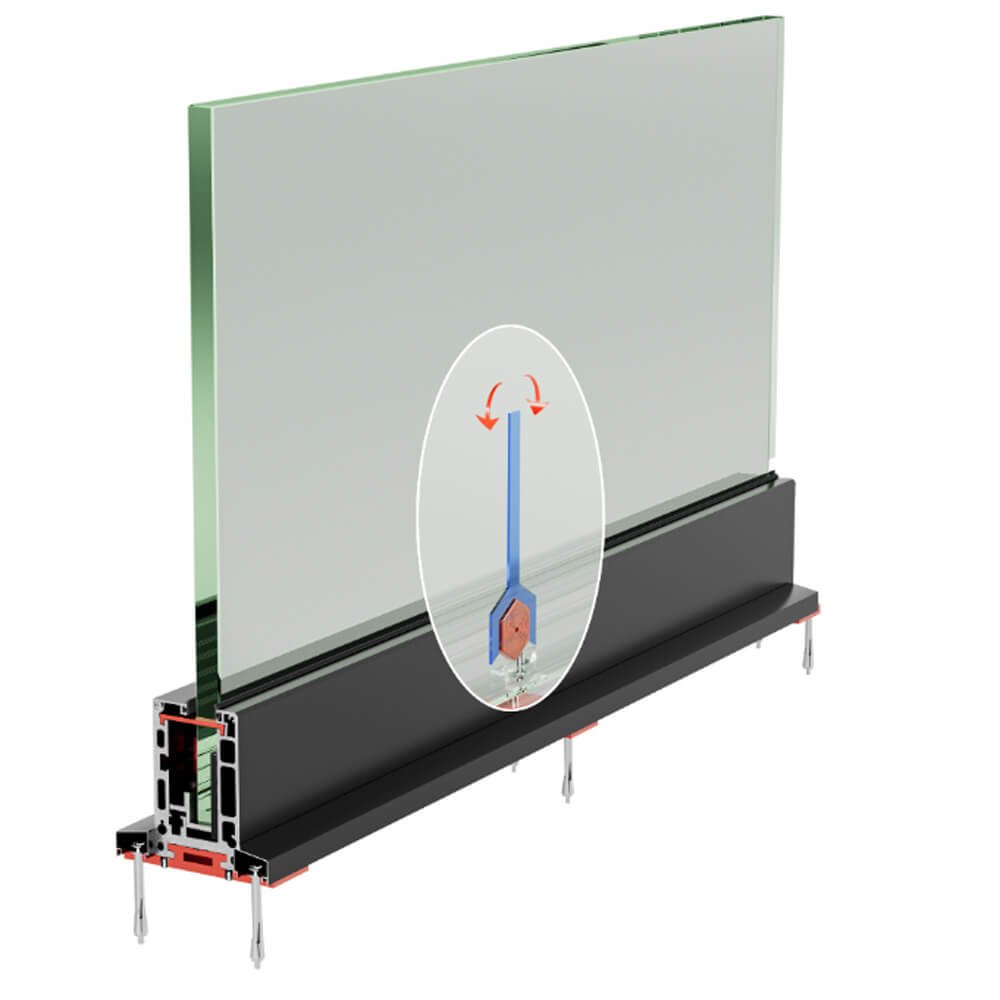

Frameless U-channel Glass Railing System AL-M80 frameless glass system is capable of not only being furnished with light strips and light strip side-mounted components but also being strengthened by double-row screws. It is popular on the market with the drainage feature and the adjustable function for glass height. It can be installed with a glass thickness up to 30 mm.
| Material | Aluminum 6063-T5 |
| LED light | Available |
| Mounting Type | Top Mount |
| Standard Color | Matt black, Dark Grey, Brown, Anodized Silver |

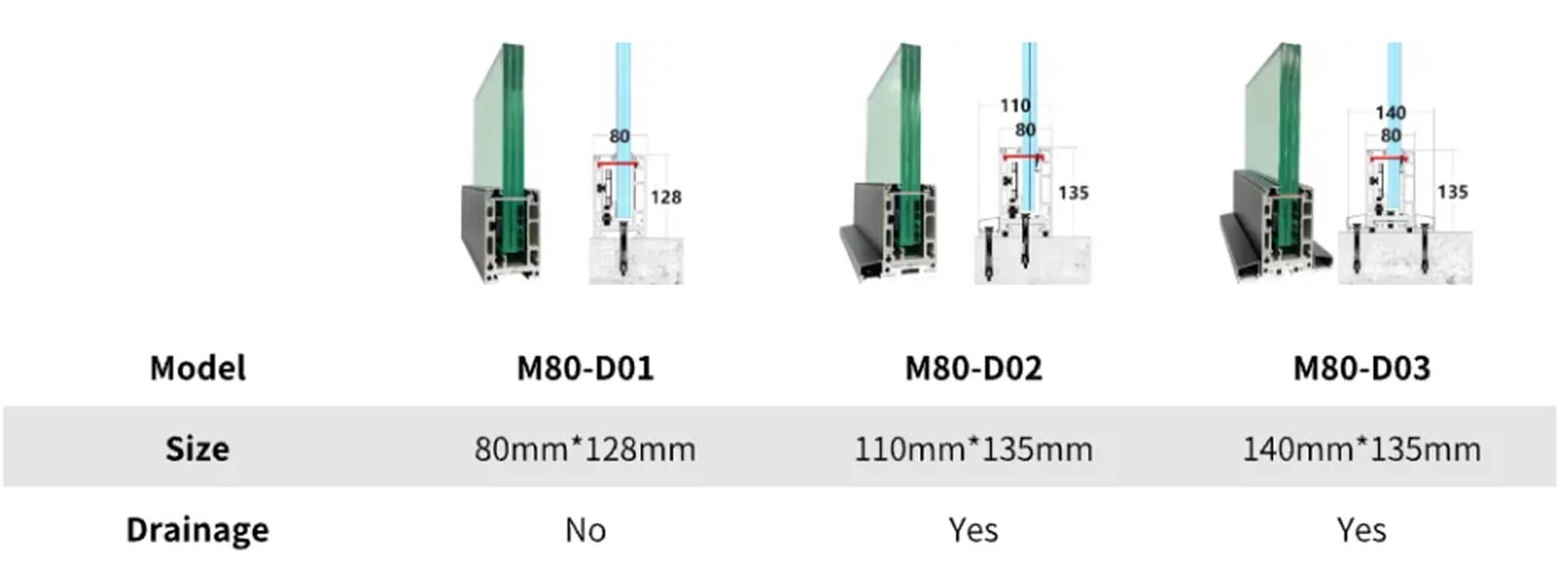

| Glass Thickness | 12mm,6+6mm,15mm,8+8mm,19mm,10+10mm，10+10+10mm |
INNOVATIONS PRODUCT

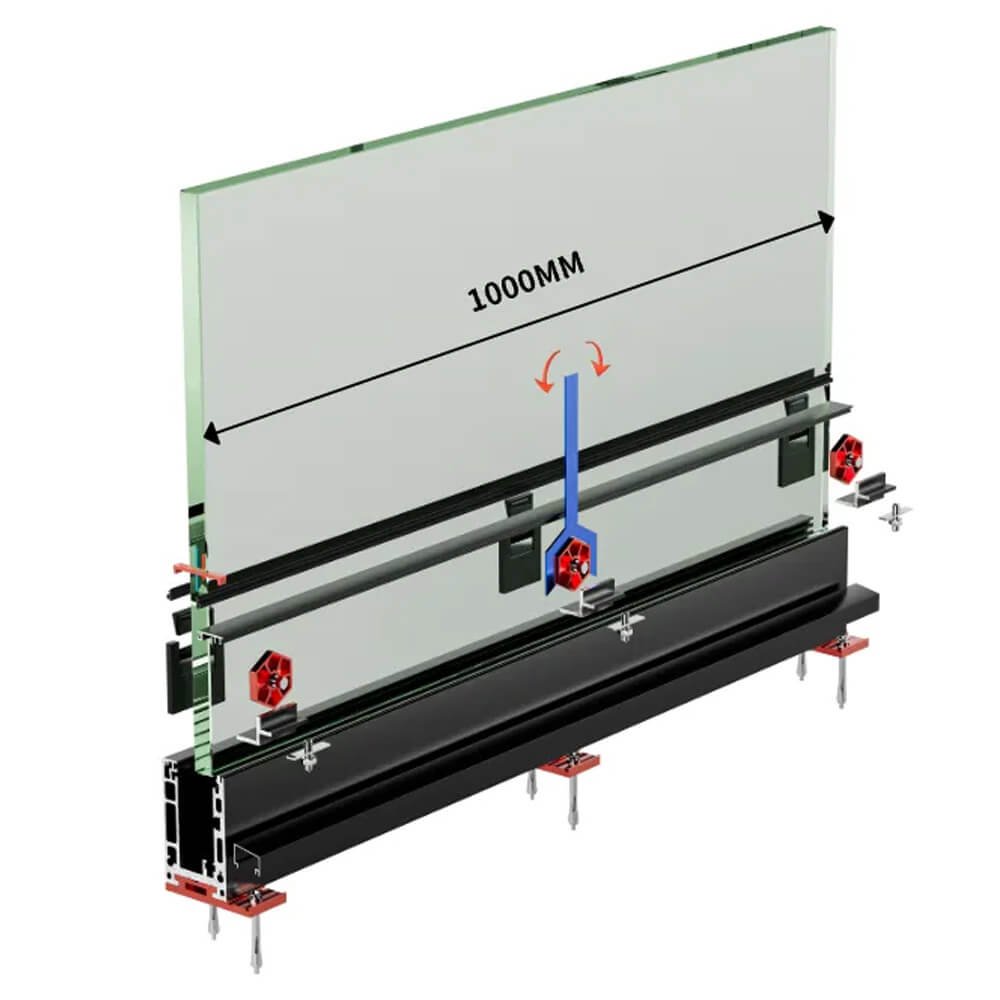

1. MORE CONVENIENT TO INSTALL
Save installation time and be much stronger. If any glass is broken, replacing it with a new one is also effortless.

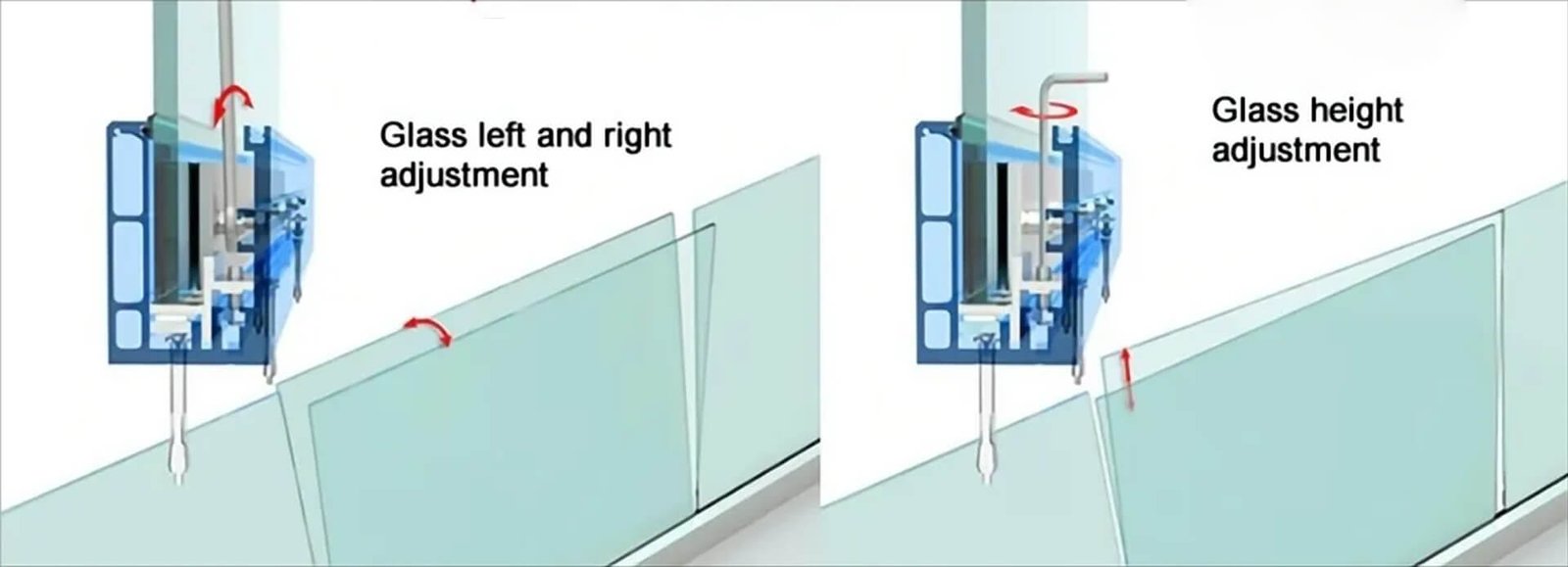

2. PLASTIC WASHER
Specially designed plastic washer. This particular washer can make a slight adjustment to the glass when the glass panels are not in alignment.
3. DRAINAGE CAPABILITY
It is feasible to incorporate a bottom block for drainage. Moreover, one additional screw is added for fixation to enhance its stability.
4. LIGHT ELEMENT
To facilitate the replacement of the LED light, we offer reflective mirrors as an option. There is no need to shift the glass for the replacement.
