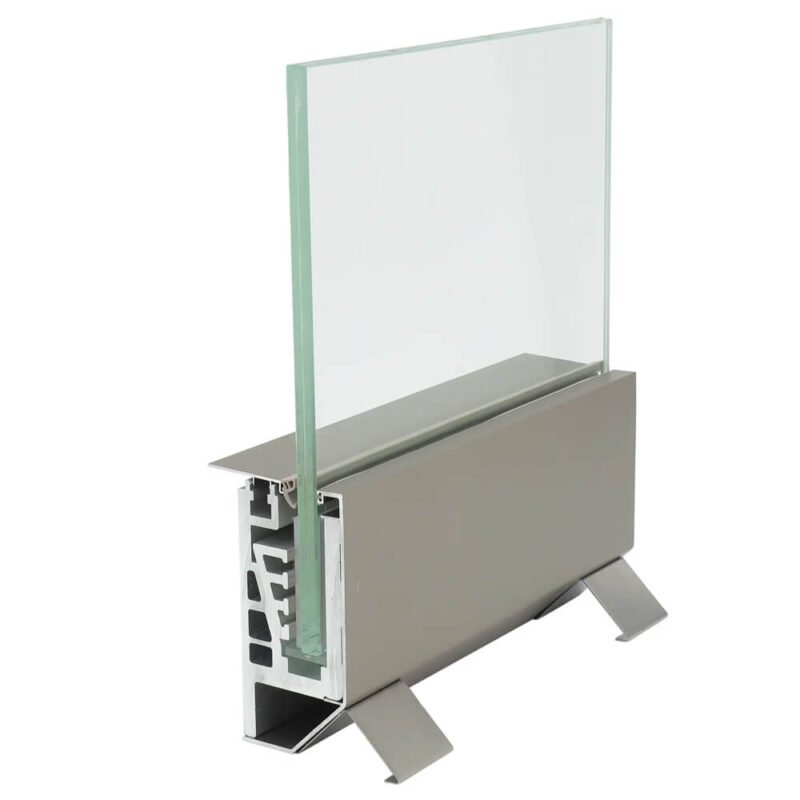

Side Fix Aluminium U Profile Channel AL-A70

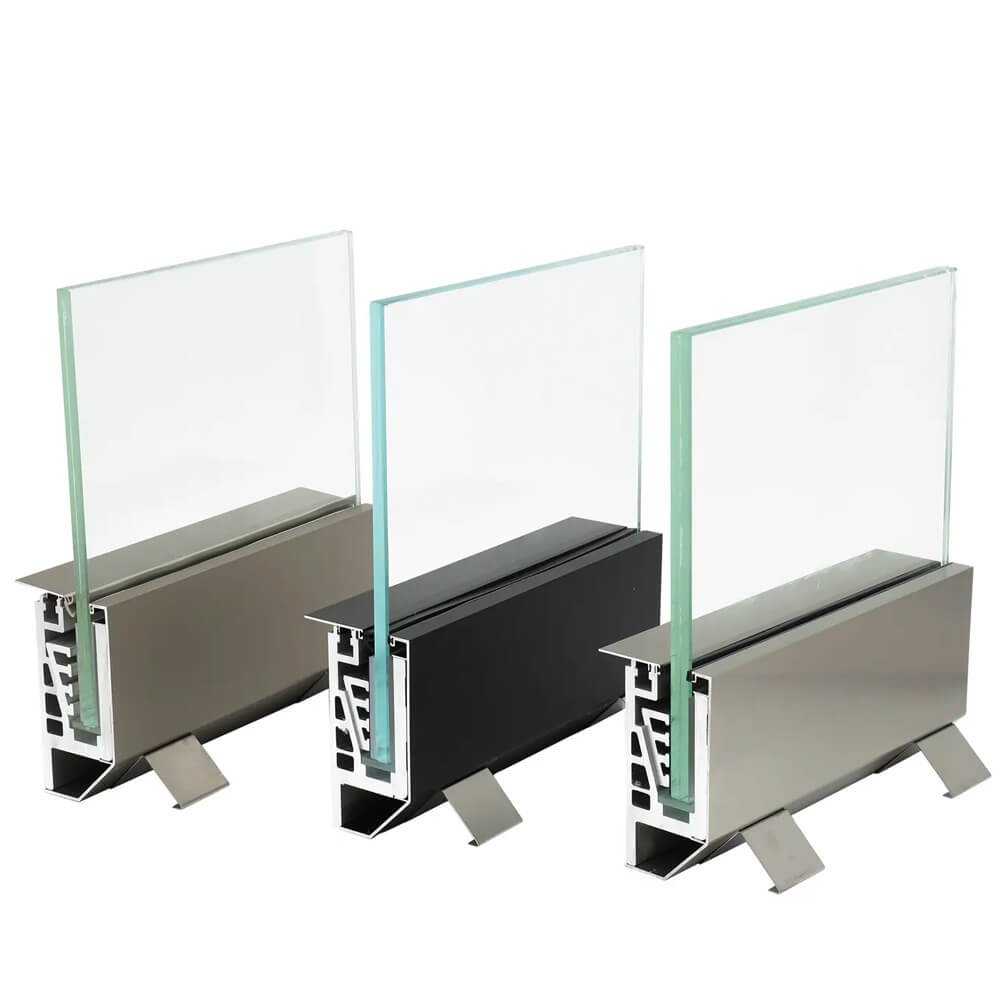

The AL-A70 railing system is constructed from Aluminum alloy 6063-T5 and boasts a sleek Anodizing finish. Measuring at 150*70mm, with a wall thickness ranging from 5-10mm. Choose from various stylish standard colors, including Anodizing Matt Black, Anodizing Matt Platinum, and Anodizing Brushed Champagne.
Select from tempered glass options of 12mm, 15mm, and 19mm, as well as 6+6, 8+8, and 10+10 laminated tempered glass.

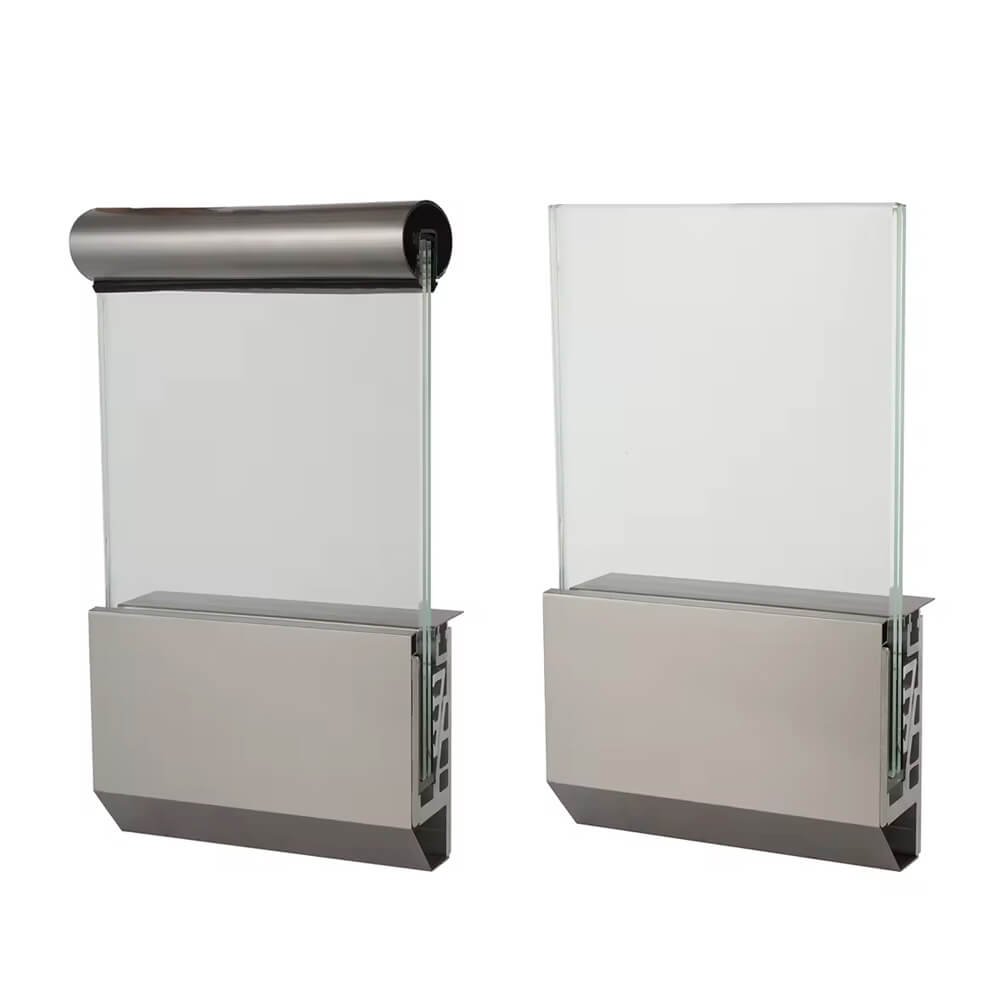

Customize the glass railing height up to 1200mm, with a recommended cap rail for added safety.
Enhance the aesthetics with LED lighting strips that can be easily installed both at the bottom and top of the glass panels.
For installation, utilize the facial mounted hexagonal socket head cap expansion bolt included.
Each meter comes with 3pcs M12*100 expansion bolts and 3pcs M8*100 countersunk expansion bolts for secure mounting.
Installation options include concrete floor, timber floor, or steel frame bases to suit your specific needs.

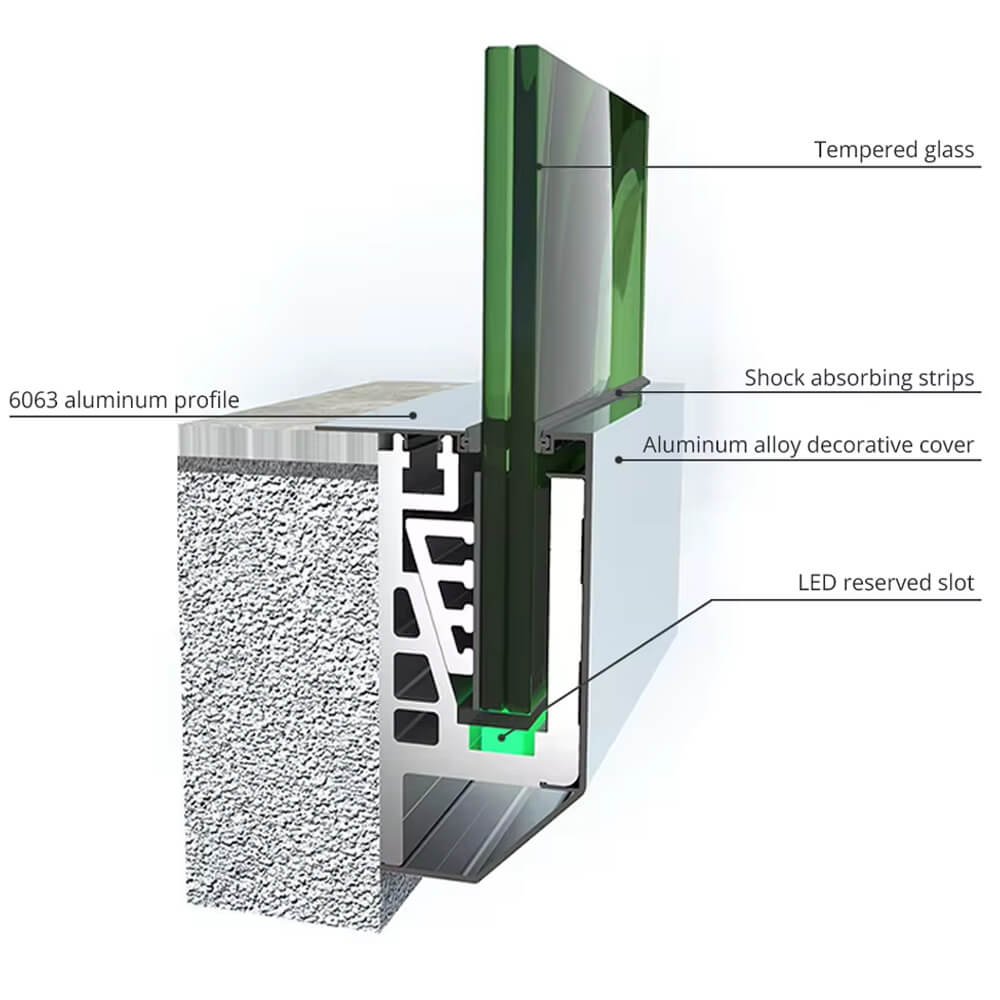

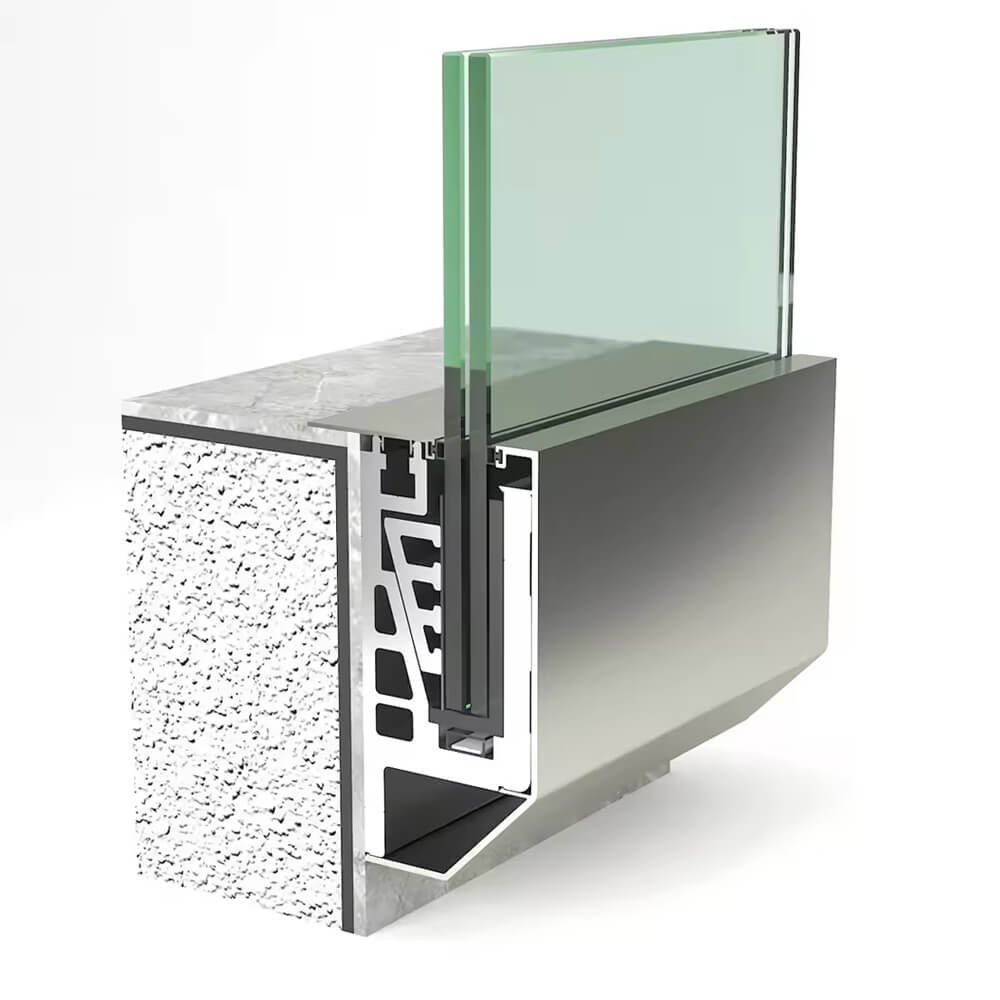

The AL-A70 External Full Glass Railing System represents a cutting-edge design for side-mounted anchoring. it eliminates the need for floor grooves, resulting in a simpler installation process. This system is particularly popular in buildings seeking expansive views without extensive concrete work. Additionally, a sleek silver or PVD stainless steel cover plate adds a touch of elegance and refinement.
Combining a refined aesthetic with a robust mechanical structure, the AL-A70 system exudes both style and security. Key features include its unobstructed views, sturdy construction, easy installation, and visual appeal. By utilizing side mount anchoring, this system optimizes space while maximizing the breathtaking views. Its durable structure ensures high strength resistance, while a wide selection of safety glass accommodates various application scenarios. Moreover, specially designed LED channels seamlessly accommodate different LED strip lights, adding vibrant colors and a festive ambiance to your evening gatherings.
Apart from utilizing a continuous linear system, the AL-A70 railing system offers the flexibility to be installed as either a 20CM or 30CM block configuration. The 20CM block is strategically positioned on the side and center of a glass panel, while the 30CM block is placed at the junction of two adjacent glass panels to ensure structural integrity and alignment.
A seamless linear LED light holder profile is threaded through the designated LED strip channel, ensuring all blocks are aligned horizontally. The LED strip light is placed on the holder profile beneath the glass, optimizing the brightness and luminosity directed towards the glass surface, thereby enhancing the overall illumination effect.

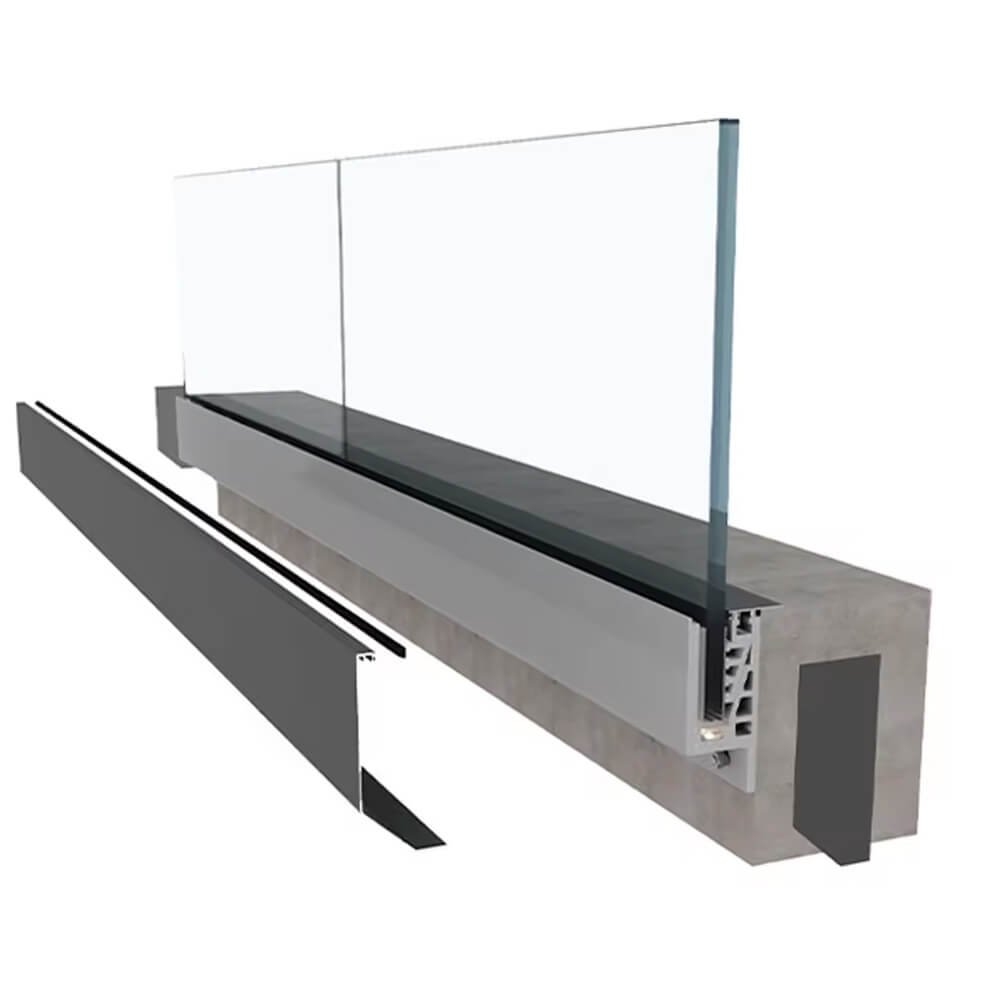

The cover plate options include aluminum profile and stainless steel sheet materials. The standard mysterious silver color for the aluminum profile cover can be enhanced with powder coating, PVDF coating, anodizing, or electrophoretic coating for added customization. Stainless steel sheet cover finishes are available in mirror, brushed, and PVD variations, with standard PVD colors like rose gold and black titanium. Moreover, PVD color options can be personalized to harmonize with your unique décor preferences.
Application
With the advantage of simple design and modern appearance, the AL-A70 External All Glass Railing System can be applied on the balcony, terrace, rooftop, staircase, guard railing, and garden fence.
